Aksm provides a variety of services by trusted profesionals

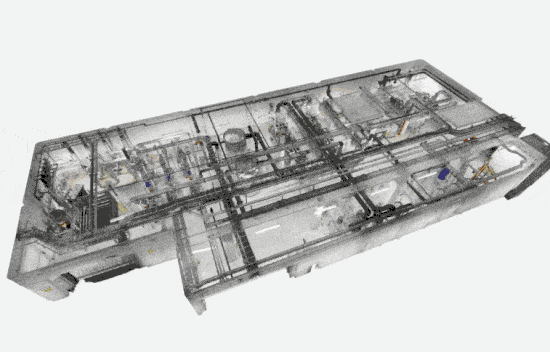

SCAN2BIM is a surveying based approach, concerning the preparation, generation and management of digital representations of the physical and functional characteristics of a building or other physical assets and facility (BIM), based on raw data collected on site through a controlled laser scan methodology using terrestrial or Slam lidar equipment.
A Scan2BIM workflow ensures that the as-built documentation is highly accurate. With laser scanning, architectural, structural, and MEP elements can be captured with precision.
In today’s complex construction environment our innovative expertise,
analysis and carefully crafted approach is bringing reliability to the construction process.
AKSM is taking part in all stages of construction, starting from the initial design through correlation and condition surveys
till the final operation through construction verification survey based on compatible or high-end equipment.
Our experienced staff at AKSM supports manufacturers in a wide range of construction process in order to meet specifications in terms of precision.
We provide measurement data with high precision for accurate information on the size, shape and position of constructed elements.

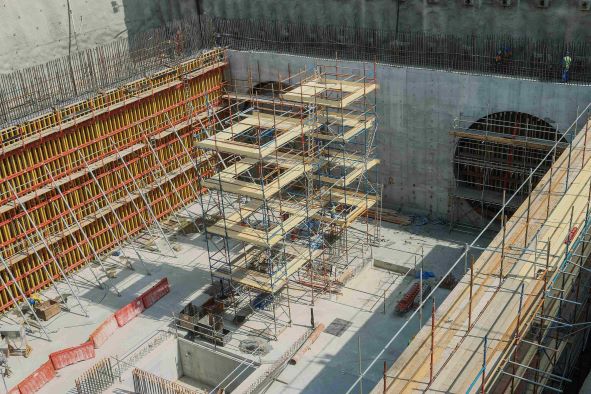

Condition Surveys present an accurate recording of the existing condition of a building or surrounding area. A condition survey provides an assessment of physical property conditions. The survey should identify deficiencies and maintenance issues including, but not limited to structural, mechanical, electrical, plumbing, fire protection, site layout, site utilities, storm water management, soil erosion and life safety systems. To facilitate an informed decision-making process, a condition survey should result in a clear understanding of the current condition of operating systems by a client.

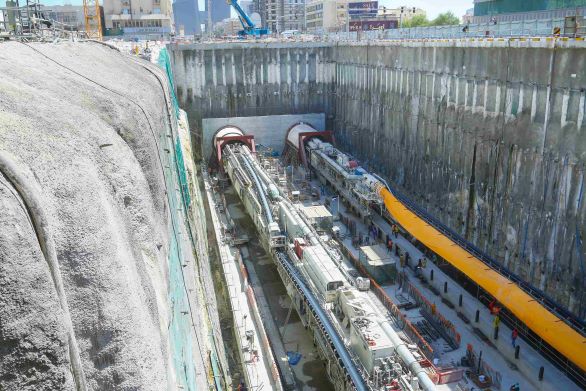

Control Network Establishment:
We provide high accuracy network creation by using the techniques that meet the project’s needs.
Setting Out:
We align the position of the elements to be constructed, ensuring the most complex designs can be built with accuracy.
Construction Verification:
We monitor and record the existing condition and timing of significant operation on the construction site through Quality Control records in order to ensure the projects’ progress.

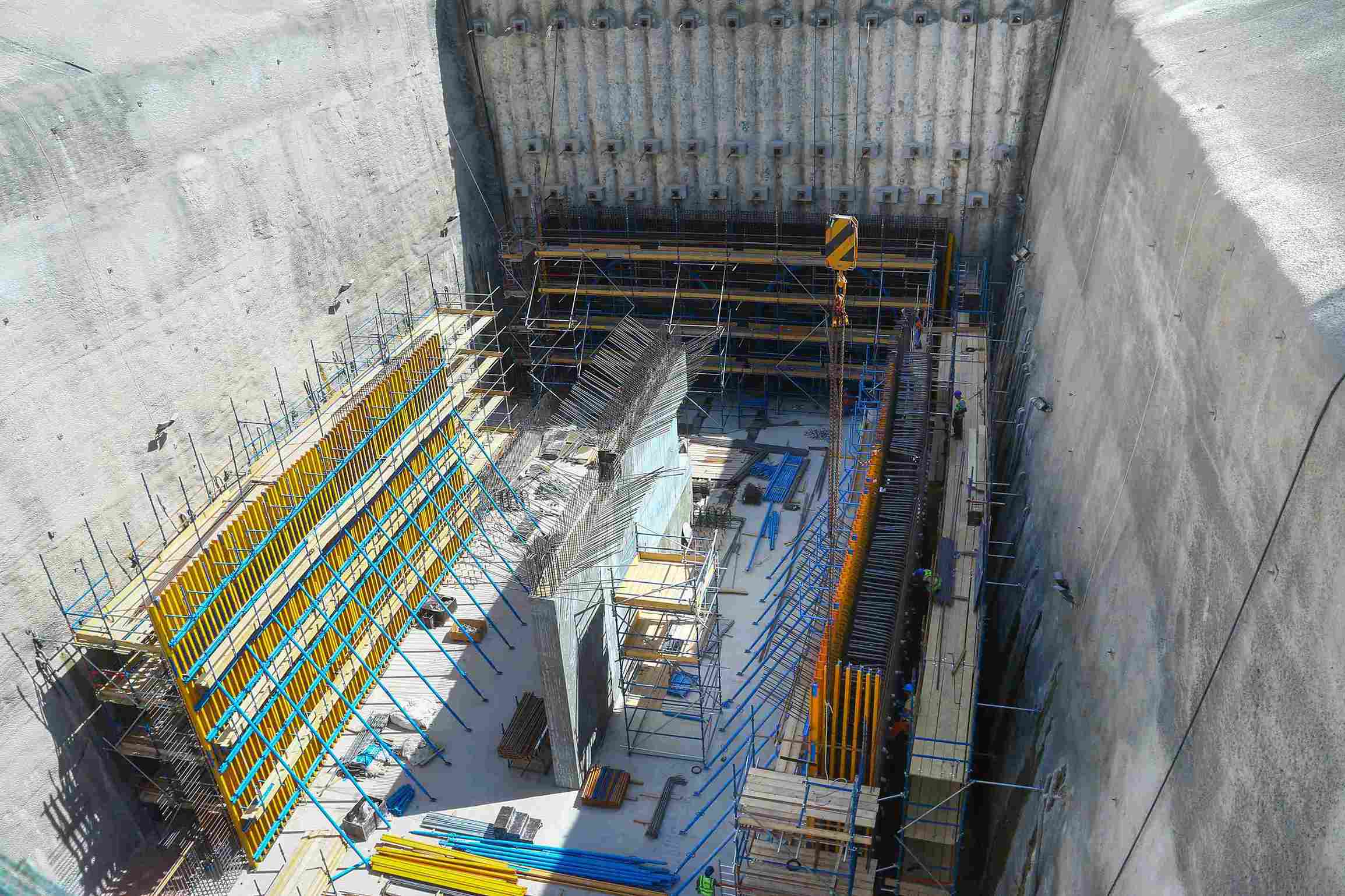

Correlation Surveys assure that any underground structure does not obstruct or interfere with proposed designs. This can be accomplished by implementing high accuracy applications which allow us to obtain precise measurement data. When a development involves underground works, it is essential that the underground control networks must be connected and orientated into the same coordinate system as the surface networks. As a consequence, we achieve accurate and reliable geospatial correlation of items above and below ground. These help us to avoid substantial cost imputations, considerable damage and construction delays.

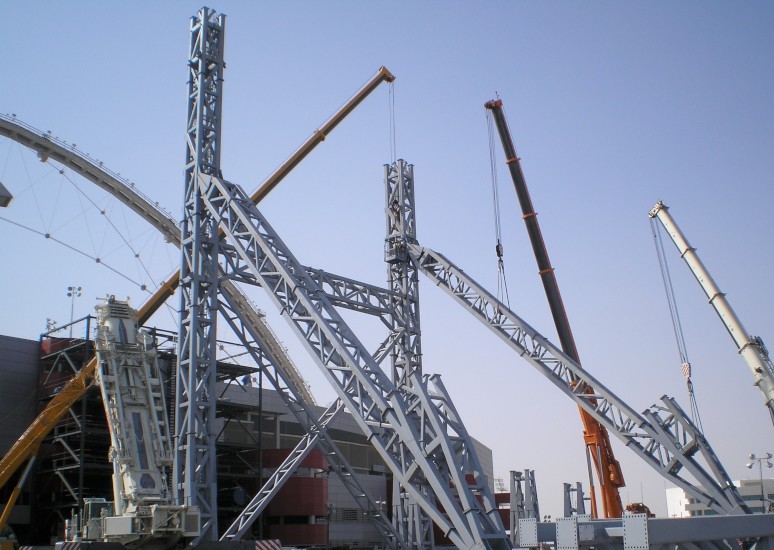

In the field of steelwork fabrication and construction, using 3D laser scanning technology provides quick and accurate collection of true three-dimensional information of components and creates true-to-scale realistic images of them. Collected laser scanning data can be analyzed through available software, which allows an accurate determination of all dimensions.

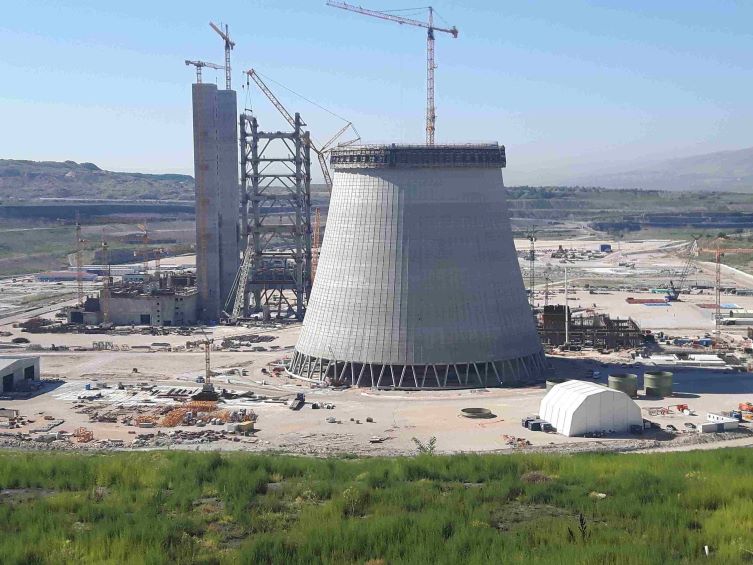

AKSM provides all the required recording work for surveys in plant construction. In this context, we mark and signalize individual points and axes required for the construction of planned buildings and plants. Setting out can be performed by our trained staff either conventionally with total-station or by means of laser tracker in special cases. After construction and installation of the plant we check and document the finalized project thereby assuring the quality of the entire construction project in terms of an as-built documentation.

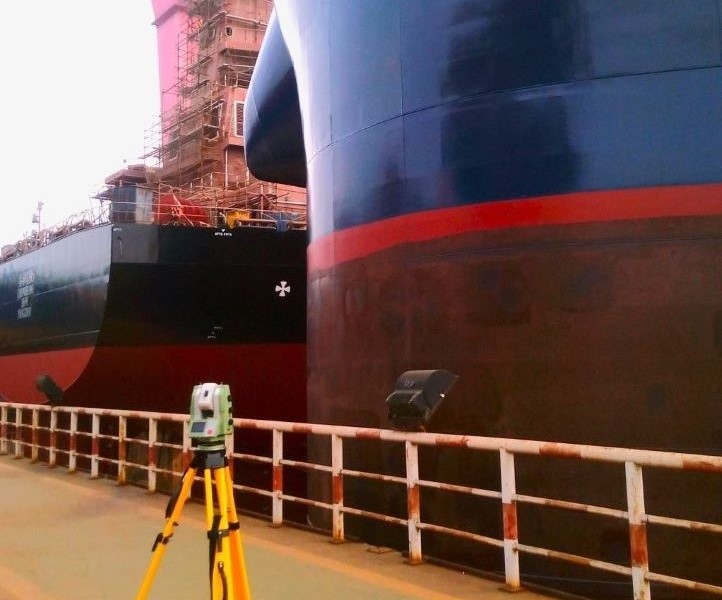

We offer a wide array of surveying services to the shipping industry, including:

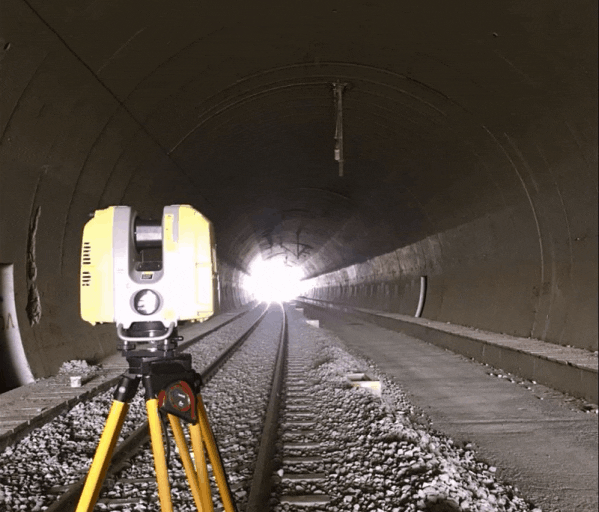

The demanding task of controlling tunnel and shaft heading comprises all the surveying required for the construction of underground and mining structure. AKSM implements high accuracy applications which allow us to survey with pinpoint accuracy for underground construction projects. We provide customer-suited solutions for conventional tunnel guidance and machine guidance. Specifically, we offer a wide array of surveying and mapping services to the tunneling and underground construction community, including project-wide geodetic control networks, control and alignment verification for tunnel boring machines, deformation monitoring, control transfer through vertical shafts of tunnels, and tunnel alignment verification using precision survey techniques.

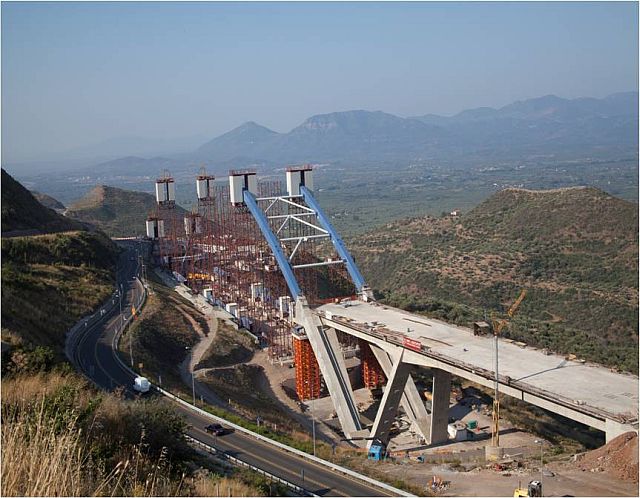

Bridge surveying is necessary to locate a site, obtain information for design, and furnish lines and grades for construction. A reconnaissance survey is made at all possible sites. A preliminary survey is made at the best site to establish horizontal and vertical control and to obtain information for the bridge design and construction planning. A location survey is made to lay out the bridge according to the bridge plans. During the actual construction, the surveyor establishes any additional lines and grades required by the construction foreman. The accuracy of measurements and the number and type of survey markers vary with the degree of precision demanded and the type of construction. Variations may range from hand-level and sketch-board work for a tactical bridge to precise measurements for a prefabricated steel bridge.
Analysis and carefully crafted approach can bring security to construction process. AKSM implements high accuracy applications which allow us to obtain precious indications of the behavior of a structure and of the fields behaviors on which the site is situated. By using high precision equipment, software and methodologies and especially with many years of experience in the field of deformation monitoring, the company can provide results, to meet the requirements of delicate projects.

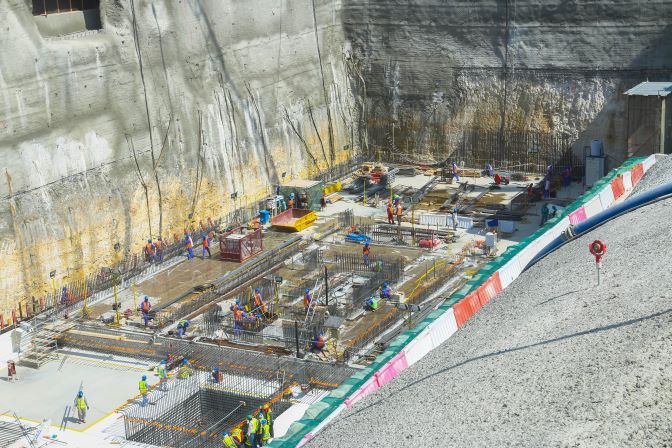

Three dimensional displacement measurements (3D) are carried out within the Zone of influence in order to determine the movement on adjacent to the project structures and buildings. Reflectors are installed in tunnels, structures, etc. and the measurements are made with high precision total stations by the method of free station.The reference network of the points, that is used for 3D measurements, consists of reference points with permanent labeling at the locations outside the zone of influence of the works or at locations remote to the excavation faces. The reference network will be checked at regular time intervals. All the measurements are corrected by the impact of the pressure and temperature diffractions. The precision of the measurements of total displacements is ± 2mm.

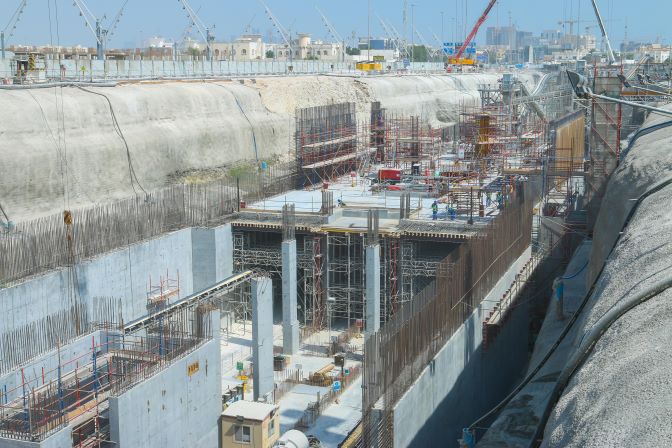

The system consists of a high accuracy networked robotic total stations and prisms located on the point of interest. This system ensures valuable and timely monitoring of the displacements, providing high measurements density, simultaneous wireless transmission and entry of the results into the MDB system to ensure minimal time between their reading and their evaluation. The total stations are remotely controlled by software and are capable of: • Following a pre-programmed operation • Allowing changes in the measurement regime to be implemented , including the measurement cycle • Providing continuous data for one point
UAV mapping involves using drones to capture aerial images and data of construction sites. This technology enhances project planning, monitoring, and management by providing high-resolution maps, 3D models, and real-time progress updates, ultimately improving efficiency, accuracy, and safety in construction projects.

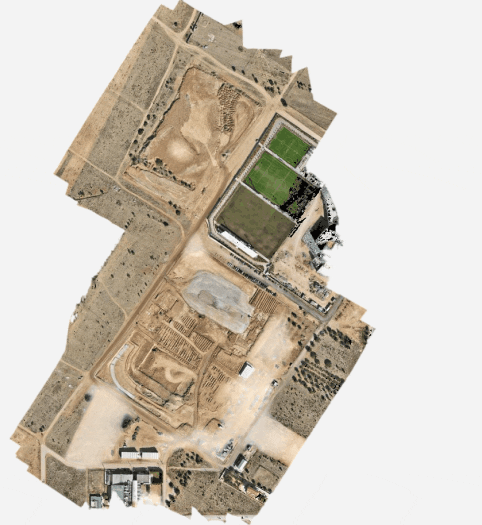

Topographic Mapping: Create detailed 2D and 3D maps of the terrain to understand site conditions before construction begins.
Boundary Surveys: Establish clear property lines and boundaries.
Volumetric Calculations: Measure stockpile volumes and earthworks accurately.
Reduces the time and cost compared to traditional surveying methods.
Provides precise data for better decision-making and project planning.
Enhances accuracy in volume estimation, reducing material costs.

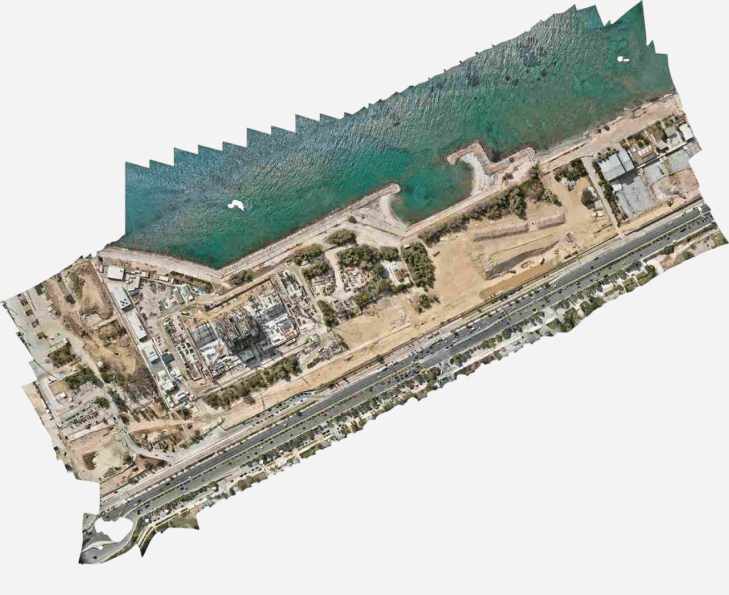

Progress Photos: Regularly capture aerial images to document the construction progress.
3D Models and Orthomosaics: Generate up-to-date models and maps to visualize project status.
Inspection Reports: Identify potential issues early through detailed visual inspections.
Facilitates real-time monitoring and quick decision-making.
Improves communication with stakeholders by providing visual progress reports.
Enhances project transparency and accountability.
Hazard Identification: Spot potential safety hazards from an aerial perspective.
Inspection of Hard-to-Reach Areas: Assess structural integrity in high or dangerous locations without putting workers at risk.
Thermal Imaging: Detect heat leaks, electrical issues, and other anomalies.
Enhances worker safety by minimizing the need for manual inspections in hazardous areas.
Reduces inspection time and increases the frequency of safety checks.
Identifies and mitigates risks promptly.
